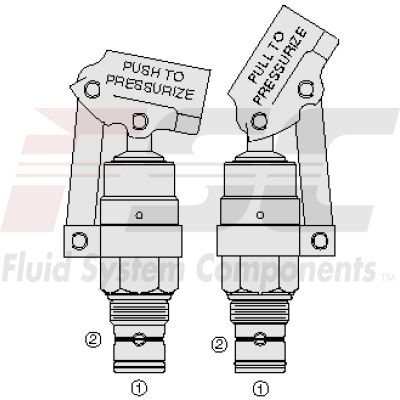

The Hydraforce HP16-21A-0-N (5471000) is a versatile and robust hand pump designed for hydraulic applications requiring reliable manual pressure generation. This screw-in, cartridge-type hand pump is engineered for use with general-purpose hydraulic oils. It features a unique design allowing the pump beam to rotate around the vertical axis, enabling 360-degree handle positioning for flexible operation in various installation settings. The hand pump is equipped with two built-in checks and can function as an emergency device during electrical power failures, highlighting its utility in critical situations. It supports a pressure rating of up to 345 bar (5000 psi) at port 2 and a suction pressure of less than atmospheric pressure at 193 mmHg (7.6 inHg). The HP16-21A-0-N offers minimal internal leakage, capped at 3 drops per minute from port 2 to the inside of the pump at a maximum of 207 bar (300 psi). Temperature adaptability is another strong point, with operating fluid temperatures ranging from -40 to +100 °C (-40 to +212 °F) with Buna N seals and -26 to +204 °C (-15 to +400 °F) with fluorocarbon seals. The unit’s storage and ambient temperature capabilities further affirm its robustness for varying environmental conditions. Additional specifications include a displacement of 21.3 ml (1.3 in³) per stroke and a unit weight of approximately 1.27 kg (2.8 lb). The HP16-21A-0-N can accommodate mineral-based or synthetic hydraulic fluids with viscosities ranging from 7.4 to 420 cSt, ensuring compatibility with a wide range of hydraulic systems. Accessories such as a long handle with plastic grip and various seal kits are available, enhancing the hand pump’s functionality and maintenance ease. This product is designed not only for high performance but also for reliability in demanding manual hydraulic operations.
