HYDRAFORCE
5601002NC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

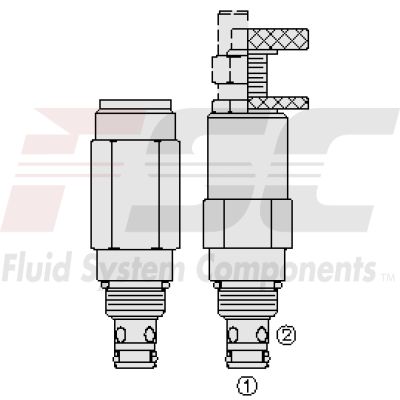

The Hydraforce 5601002NC (5601002NC) is a screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve designed to function as a pressure limiting device in demanding hydraulic circuits. This model is particularly noted for its low hysteresis and low internal leakage, making it suitable for applications requiring precision and reliability. The RV08-22X model operates by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to move the poppet off its seat. The valve features several pressure adjustment options, including non-adjustable factory presets and options A, B, and C with positive stops that prevent springs from going solid. It also includes an optional bi-directional pressure seal for added versatility. The hardened poppet and cage enhance durability and ensure a long service life. Optional spring ranges allow the valve to handle pressures up to 248 bar (3600 psi), while its smooth response to pressure surges makes it an excellent choice for maintaining system stability. The compact size of this valve allows for easy integration into existing systems, and its design fits an industry-common cavity for straightforward installation or replacement.
