HYDRAFORCE
5601201

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

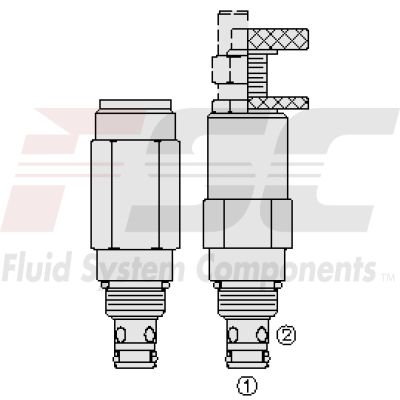

The Hydraforce 5601201 (5601201) is a screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve designed to serve as a pressure limiting device in demanding hydraulic circuits. This model is ideal for applications requiring low hysteresis and minimal internal leakage. The RV08-22X operates by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to unseat the poppet. It features adjustments that cannot be backed out of the valve, offering a variety of pressure adjustment options including non-adjustable factory presets. Adjustment options A, B, and C come with positive stops to prevent springs from becoming solid. An optional bi-directional pressure seal enhances its versatility. The valve's hardened poppet and cage ensure long-lasting performance and durability. It supports optional spring ranges up to 248 bar (3600 psi) and provides a smooth response to pressure surges. Designed with an industry-common cavity and compact size, this relief valve is suitable for integration into various hydraulic systems where space is limited but high performance is required.
