HYDRAFORCE
5605040V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

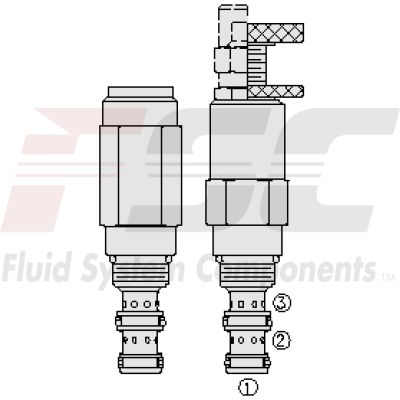

The Hydraforce 5605040V (Material Number: 5605040V) is a screw-in, cartridge-style, direct-acting, spool-type hydraulic sequence valve. It features an external pilot and internal spring chamber drain, designed to direct flow to a secondary circuit once a predetermined pressure level is achieved in the primary circuit. In its steady state, the PS08-32 blocks flow from port 3 to port 2. When the pre-determined pressure at port 1 is reached, the cartridge shifts to open port 3 to port 2. The spring chamber vented at port 2 means that any back pressure at this port will directly affect the valve's setting on a one-to-one basis. The valve's design ensures that adjustments cannot be backed out of the valve and prohibits springs from going solid, providing reliability and stability in various applications. Optional spring ranges extend up to 165.5 bar (2400 psi), catering to diverse operational requirements. The hardened spool and cage contribute to long life and durability, while its compact size aligns with industry standards for ease of integration into existing systems.
