HYDRAFORCE
5606002

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

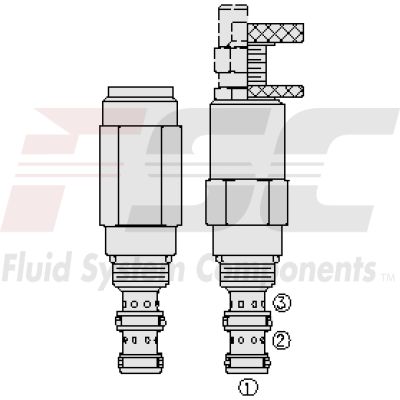

The Hydraforce PR08-32A-0-N-12/ (Material Number: 5606002) is a versatile screw-in, cartridge-style hydraulic pressure reducing/relieving valve. It features a direct-acting spool type design with an internal pilot and spring chamber drain, specifically engineered for pressure regulation in secondary circuits within stable input flow systems. The valve facilitates bidirectional flow from port 2 to port 1 while maintaining constant drainage at port 3. Upon reaching a predetermined pressure at port 1, the valve shifts to block flow at port 2, effectively regulating the pressure at port 1 and relieving excess pressure from port 1 to port 3 over a variable range above the set reducing pressure. The PR08-32A model comes with non-backable adjustments that prevent springs from going solid and offers optional spring ranges up to 152 bar (2200 psi). It boasts hardened spool and cage components for enhanced durability in a compact size that aligns with industry standards. The valve is rated for pressures up to 241.3 bar (3500 psi) at ports 1 and 2, and up to 103.4 bar (1500 psi) at port 3, with proof and burst pressures of 517.1 bar (7500 psi) and 896.3 bar (13000 psi), respectively. It supports flow rates of up to 11.4 lpm (3 gpm) with maximum internal leakage limited to 82 ml/min under specific conditions. Operating fluid temperature ranges vary based on seal material: -40 to 100 \u00b0C for buna N seals, -26 to 204 \u00b0C for fluorocarbon seals, and -54 to 107 \u00b0C for urethane seals. The PR08-32A weighs approximately 0.23 kg and fits into VC08-3 cavities with specified installation torques ensuring secure assembly without orientation restrictions.
