HYDRAFORCE
5606434

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

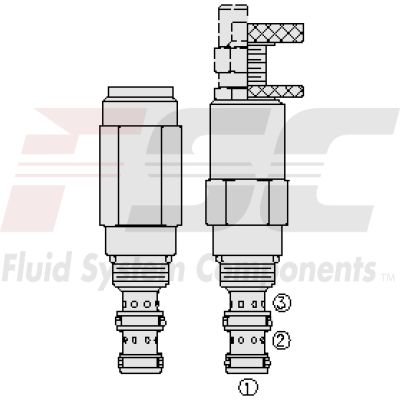

The Hydraforce 5606434 (5606434) is a screw-in, cartridge-style, direct-acting spool type hydraulic pressure reducing/relieving valve. It features an internal spring chamber drain and a spool damping chamber, specifically designed to regulate pressure in secondary circuits. In its steady state, the valve allows bidirectional flow from port 2 to port 1 while maintaining constant drainage at port 3. Once the predetermined pressure is reached at port 1, the cartridge shifts to block flow at port 2, effectively regulating the pressure at port 1 and allowing for relief from port 1 to port 3. The valve can be equipped with an optional screen of up to 233 microns and offers spring ranges up to 248 bar (4200 psi). Its design includes a hardened spool and cage for increased durability and compact size for compatibility with industry standards. Adjustments are secure, preventing springs from becoming solid or being backed out of the valve inadvertently.
