HYDRAFORCE
5606450V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

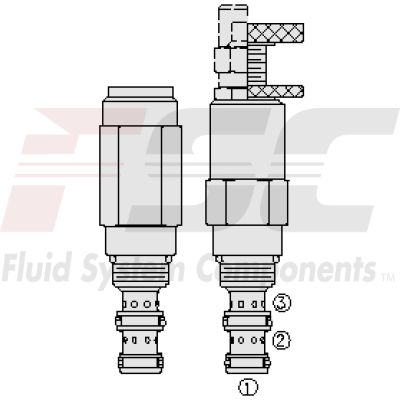

The Hydraforce PR58-38A-0-V-05/ (5606450V) is a screw-in, cartridge-style, direct-acting spool type hydraulic pressure reducing/relieving valve. This product is designed for secondary circuit pressure regulation and features an internal spring chamber drain along with a spool damping chamber. In its default state, the PR58-38A-0-V-05/ allows bidirectional flow from port 2 to port 1 while maintaining constant drainage at port 3. When the pressure at port 1 reaches a predetermined threshold, the valve shifts to block flow at port 2, effectively regulating the pressure at port 1 and potentially relieving it to port 3. The valve includes features such as non-backout adjustments and optional spring ranges up to 248 bar (4200 psi). It also offers an optional 233-micron screen for additional protection. The durable construction includes a hardened spool and cage to ensure long life and reliability in compact, industry-standard sizes. This valve operates efficiently under various conditions with pressure ratings of up to 344.7 bar (5000 psi) and a proof pressure of 379.2 bar (5500 psi). It can handle burst pressures as high as 896.3 bar (13000 psi). The flow rating is set at a maximum of 18.9 lpm (5 gpm), making it suitable for numerous applications requiring precise pressure control. Temperature specifications accommodate operating fluid temperatures ranging from -40 to 100 \u00b0C (-40 to 212 \u00b0F) with buna N seals, extending further when using fluorocarbon or polyurethane seals. The storage and ambient temperature range is -40 to 70 \u00b0C (-40 to 160 \u00b0F), ensuring versatility in different environments. It supports mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt, maintaining optimal performance even under varying contamination levels per ISO standards.
