HYDRAFORCE
5610043

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

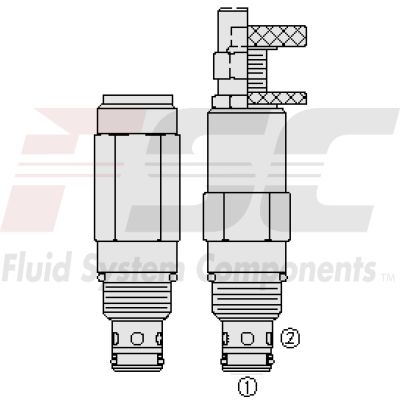

The Hydraforce RV10-20A-6T-N-33/ (5610043) is a screw-in, cartridge-style, direct-acting poppet type hydraulic relief valve designed for pressure limiting in common hydraulic circuits. It is suitable for use with mineral-based or synthetic hydraulic fluids that have lubricating properties. This valve blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the poppet, ensuring quick response to load changes while maintaining low internal leakage. The RV10-20X has a maximum pressure rating of 228 bar (3300 psi) at port 1 and 34.5 bar (500 psi) at port 2, with a proof pressure of 517.1 bar (7500 psi) and a burst pressure of 1037.7 bar (15000 psi). Its relief pressure range extends from 6.9 to 206.8 bar (100 to 3000 psi), accommodating various operational needs. The valve features a flow rating of up to 38 lpm (10 gpm) at maximum pressure and maintains minimal internal leakage of just five drops per minute up to 85% of its nominal setting. It operates effectively within fluid temperatures ranging from -40 to 100 \u00b0C with Buna N seals, -26 to 204 \u00b0C with fluorocarbon seals, and -54 to 107 \u00b0C with polyurethane seals, making it versatile across different environments. Corrosion protection is ensured through type III clear zinc plating per ASTM B633 standards, providing durability in demanding conditions. The RV10-20X fits into VC10-2 cavities and requires an installation torque between 33.9 and 36.7 N-m, with a maximum allowable torque of up to 67.7 N-m. The unit's wetted surface area ranges from approximately 133 cm\u00b2 to150 cm\u00b2 depending on specific configurations, supporting its robust design for effective hydraulic circuit protection applications.
