- Model:RV50-22A-4BD-P-50/ RELIEF VALVE
- Summary:RELIEF VALVE CARTRIDGE DIRECT ACTING POPPET
Due to extremely high demand, please call 920-337-0234 for availability

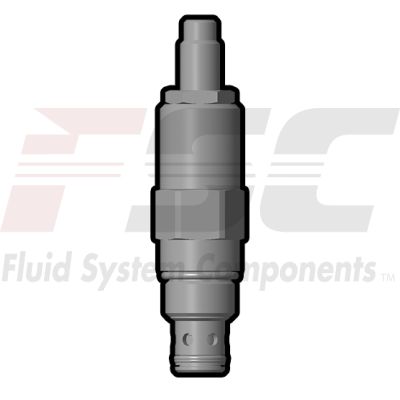

The Hydraforce 5611034 (5611034) is a screw-in, cartridge-style hydraulic relief valve designed for demanding hydraulic circuits where low hysteresis and minimal internal leakage are crucial. This direct-acting, differential area, poppet-type valve is engineered to function as a pressure-limiting device. It operates by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to unseat the poppet. The RV50-22X model ensures a smooth transition in response to load changes in typical hydraulic systems. Notably, crossover applications should be limited to a maximum of 207 bar (3000 psi). Key features include non-backable adjustments that prevent springs from becoming solid and a hardened poppet and cage that contribute to the valve's longevity. Additionally, it offers a smooth response to pressure surges and is available in an industry-common size for easy integration into existing systems.
Unit weight:
0.23 kg (0.51 lb)
RV50-22A
0.25 kg (0.56 lb)
RV50-22B
0.28 kg (0.61 lb)
RV50-22C
0.22 kg (0.49 lb)
RV50-22F
0.22 kg (0.49 lb)
RV50-22H
0.28 kg (0.61 lb)
RV50-22L
Internal wetted surface area:
114 cm² (17.7 in²)
A, B, C, and L
126 cm² (19.5 in²)
F and H
Pressure change per adjuster turn:
35.8 bar (520 psi)
(approximate) A, B, C and L adjusters, spring code 50
44.9 bar (651 psi)
(approximate) H and F adjusters, spring code 50
| Ratings | Pressure Ratings Pressure rating: 365 bar (5300 psi) Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Flow Ratings Flow rating: 75.7 lpm (20 gpm) Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals with urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) H style plug torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV50-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 50 34 to 345 bar (500 to 5000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-T
X=N, V, P (port 2 pressure only)
SK10-2P-M
For PC seal option
SK10-2U-O
For U seal option
Seal kit installation instructions
Housings:
Available
10-2W valve bodies
