HYDRAFORCE
5611062

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

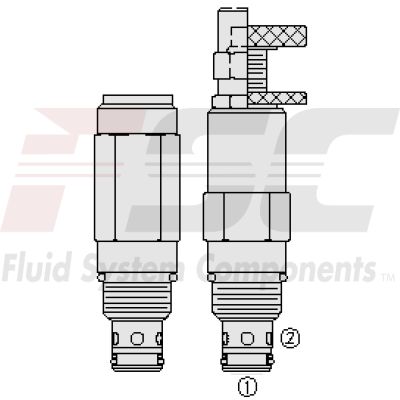

The Hydraforce RV10-22A-8T-N-25/ (5611062) is a screw-in, cartridge-style, direct-acting, differential area poppet-type hydraulic relief valve designed for pressure limiting in demanding hydraulic circuits. This valve effectively manages flow by blocking it from port 2 to port 1 until the pressure at port 2 forces the poppet from its seat. It ensures a smooth transition in response to varying loads, making it ideal for applications requiring low hysteresis and minimal internal leakage. The RV10-22A features adjustments with positive stops to prevent springs from going solid and hardened poppet and cage components for extended durability. It supports optional spring ranges up to 241 bar (3500 psi) and offers rapid response to pressure surges, fitting into industry-common sizes. This relief valve can handle a maximum flow rating of 113.6 lpm (30 gpm) with internal leakage capped at 5 drops per minute up to 85% of the nominal setting. It operates efficiently across a wide temperature range, depending on seal material: -40 to 100 \u00b0C with Buna N seals, -26 to 204 \u00b0C with fluorocarbon seals, and -54 to 107 \u00b0C with polyurethane seals. Designed for resilience, it withstands up to 960 hours of salt spray per ASTM B117 standards for corrosion protection. The RV10-22A's fluid compatibility includes mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The valve fits into VC10-2 cavities and requires an installation torque between 33.9 and 36.7 N-m (25 to 27 ft-lb), with no orientation restrictions during installation. Seal kits are available for various configurations, ensuring flexibility in application setups.
