HYDRAFORCE
5611503
$60.50 USD
- HYDRAFORCE
- Material:5611503
- Model:RV50-22L-0-P-50/ RELIEF VALVE
- Summary:RELIEF VALVE CARTRIDGE DIRECT ACTING POPPET
Due to extremely high demand, please call 920-337-0234 for availability

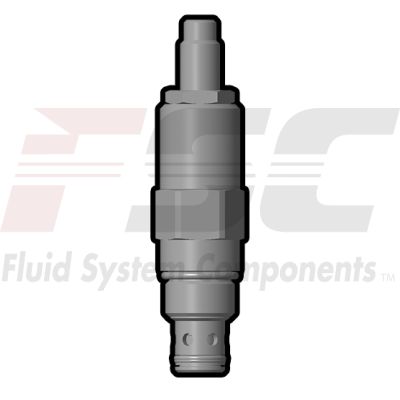

The Hydraforce 5611503 (5611503) is a screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve. It is specifically designed for use as a pressure-limiting device in demanding hydraulic circuits that require low hysteresis and low internal leakage. The RV50-22X model effectively blocks flow from port 2 to port 1 until the pressure at port 2 reaches a level sufficient to unseat the poppet. This design ensures a smooth transition in response to varying loads in common hydraulic circuits. It is important to note that crossover applications should be limited to a maximum of 207 bar (3000 psi). The valve features adjustments that cannot be backed out, preventing the springs from going solid and ensuring reliable operation. Additionally, the hardened poppet and cage contribute to its long life and ability to handle pressure surges smoothly. The RV50-22X adheres to an industry-common size, making it compatible with a wide range of systems and applications where precise pressure control is essential.
Unit weight:
0.23 kg (0.51 lb)
RV50-22A
0.25 kg (0.56 lb)
RV50-22B
0.28 kg (0.61 lb)
RV50-22C
0.22 kg (0.49 lb)
RV50-22F
0.22 kg (0.49 lb)
RV50-22H
0.28 kg (0.61 lb)
RV50-22L
Internal wetted surface area:
114 cm² (17.7 in²)
A, B, C, and L
126 cm² (19.5 in²)
F and H
Pressure change per adjuster turn:
35.8 bar (520 psi)
(approximate) A, B, C and L adjusters, spring code 50
44.9 bar (651 psi)
(approximate) H and F adjusters, spring code 50
| Ratings | Pressure Ratings Pressure rating: 365 bar (5300 psi) Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Flow Ratings Flow rating: 75.7 lpm (20 gpm) Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals with urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) H style plug torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV50-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 50 34 to 345 bar (500 to 5000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-T
X=N, V, P (port 2 pressure only)
SK10-2P-M
For PC seal option
SK10-2U-O
For U seal option
Seal kit installation instructions
Housings:
Available
10-2W valve bodies
