HYDRAFORCE
5612504

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

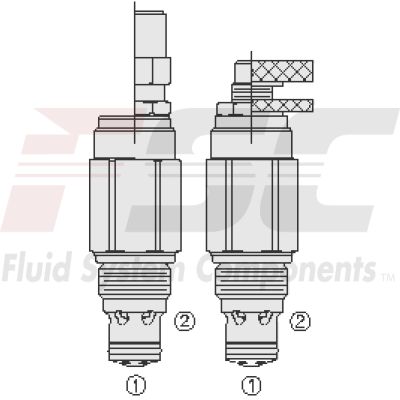

The Hydraforce RVD50-20A-0-N-24/ (5612504) is a screw-in, cartridge-style, direct acting poppet type relief valve designed for use as a pressure limiting device in hydraulic circuit protection. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the poppet. This valve is known for its rapid response to load changes, exhibiting low hysteresis, a minimal pressure rise, and low internal leakage. The adjustments on this valve cannot be backed out, ensuring stability in settings without altering the adjuster\u2019s height. Constructed with a hardened poppet and cage, it offers durability and longevity in performance. The RVD50-20A-0-N-24/ supports optional spring ranges up to 345 bar (5000 psi), with a maximum pressure rating of 413.7 bar (6000 psi), proof pressure of 785.4 bar (11000 psi), and burst pressure of 1515.8 bar (22000 psi). The valve has a flow rating of up to 113.6 lpm (30 gpm) from port 1 to 2 at maximum pressure, with internal leakage maintained at a maximum of 0.25 ml/min (5 drops/min) up to 80% of nominal levels. Temperature ratings vary depending on seal material: -40 to 100 \u00b0C (-40 to 212 \u00b0F) for buna N seals, -26 to 204 \u00b0C (-15 to 400 \u00b0F) for fluorocarbon seals, and -54 to 107 \u00b0C (-65 to 225 \u00b0F) for polyurethane or urethane seals. It can withstand ambient temperatures between -40 and 70 \u00b0C (-40 and 160 \u00b0F). The valve also features corrosion protection withstanding up to 960 hours in salt spray per ASTM b117 standards. Compatible with mineral-based or synthetic fluids possessing lubricating properties, it accommodates fluid viscosities ranging from 7.4 to 420 cSt and requires an operating contamination level of no more than ISO code18/16/13 per ISO4406 standards.
