HYDRAFORCE
RVCV56-20A-0-N-30/
5612541
$126.00
- HYDRAFORCE
- Material:5612541
- Model:RVCV56-20A-0-N-30/ RELIEF VALVE
- Summary:RELIEF VALVE WITH ANTICAVITATION CHECK VALVE, DIRECT ACTING POPPET
Quantity in stock: 0

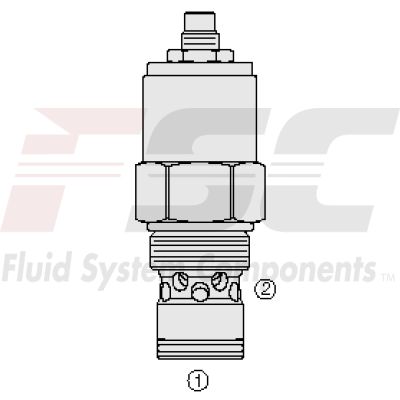

Description The RVCV56-20X is a screw-in, cartridge, direct acting poppet relief valve with reverse flow check valve. Operation This device is intended for use as a pressure limiter and regulator in demanding hydraulic circuits which require fast response, low hysteresis, low leakage, low pressure override, and reverse free flow features. The RVCV56-20X blocks flow from port 1 to port 2 until sufficient pressure at port 1 will displace poppet from the seat. Relief flow discharges to port 2. Reverse flow occurs from port 2 to port 1 when differential pressure between port 2 and port 1 exceed check spring value. Features Maximum pressure 420.6 bar (6100 psi) at port 1. Adjustments cannot be backed out of the valve. Adjustments prohibit springs from going solid. Hardened spool and cage for long life. Fast, smooth response to pressure surges.
Properties: Unit weight:
0.58 kg (1.28 lb)
A
0.60 kg (1.33 lb)
B
0.62 kg (1.36 lb)
C l
0.56 kg (1.24 lb)
F h
Internal wetted surface area:
0.68 cm² (48.2 in²)
A b c l
0.68 cm² (46.2 in²)
F h
Ratings: Pressure Ratings
Pressure rating:
420.6 bar (6100 psi)
Port 1
68.9 bar (1000 psi)
Port 2
Proof pressure:
482.6 bar (7000 psi)
Burst pressure:
965.3 bar (14000 psi)
Overshoot:
Less than 20% of setting
Adjustable pressure range:
137.9 to 420.6 bar (2000 to 6100 psi)
Port 1 to 2
Crack pressure defined:
Pressure evident at 0.95 lpm (0.25 gpm)
Reseat pressure:
Port 1 to port 2 85% of crack maximum
Crack pressure:
0.34 bar (5 psi)
Flow Ratings
Flow rating:
113.6 lpm (30 gpm)
Port 1 to 2
174.1 lpm (46 gpm)
Port 2 to 1
Maximum internal leakage:
0.53 ml/min (10 drops/min)
Port 2 at 103.4 bar (1500 psi)
Temperature Ratings
Operating fluid temperature:
-40 to 100 °C (-40 to 212 °F)
With buna N seals
-26 to 204 °C (-15 to 400 °F)
With viton seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane seals
Storage temperature:
-40 to 70 °C (-40 to 160 °F)
Ambient temperature:
-40 to 70 °C (-40 to 160 °F)
Operating Parameters: Fluids:
Mineral based or synthetic with lubricating properties
Fluid viscosity range:
7.4 to 420 cSt
Maximum operating contamination level:
18/16/13 per ISO 4406
Performance:
Installation Specifications: Cavity:
VC16-2 variation 'a' (recommended for higher flows)
16-size-2-way Cavities
Cartridge installation torque:
199 to 207.4 N-m (147 to 153 ft-lb)
Orientation restriction:
None
Order Code: POSITION CODE DESCRIPTION RVCV56-20F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 6B Aluminum BSPP 3/4" (6) H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 30 137.9 to 206.8 bar (2000 to 3000 psi) Spring Range R 45 213.7 to 310.3 bar (3100 to 4500 psi) Spring Range R 61 317.2 to 420.6 bar (4600 to 6100 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100)
Dimensions:
Accessories: Seal kit:
SK16-2X-B
X=seal option
Seal kit installation instructions
Housings:
Available
16-2w valve bodies
