HYDRAFORCE
5612543P

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

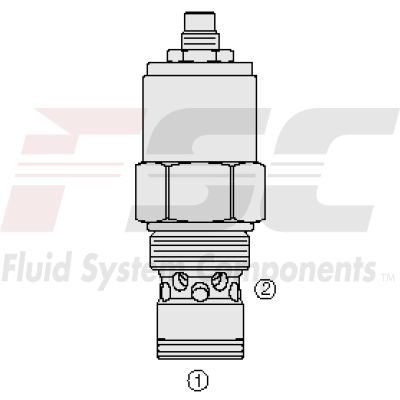

The Hydraforce 5612543P (5612543P) is a screw-in, cartridge, direct acting poppet relief valve with an integrated reverse flow check valve, specifically designed for use in hydraulic circuits that demand rapid response and precision. This versatile device functions as both a pressure limiter and regulator, offering low hysteresis, minimal leakage, and low pressure override while allowing reverse free flow. The RVCV56-20X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to displace the poppet from its seat, subsequently allowing relief flow to discharge through port 2. In instances where reverse flow is required, it facilitates fluid movement from port 2 to port 1 when the differential pressure between these ports surpasses the check spring value. The valve can withstand a maximum pressure of up to 420.6 bar (6100 psi) at port 1. Its design ensures that adjustments cannot be backed out of the valve and prevents springs from becoming solid during operation. Additionally, the hardened spool and cage components contribute to its durability and long service life while ensuring fast and smooth responses to any pressure surges within the system.
