HYDRAFORCE
5612914
$39.37 USD
- HYDRAFORCE
- Material:5612914
- Model:RVD58-20C-0-N-50
- Summary:RELIEF VALVE
Due to extremely high demand, please call 920-337-0234 for availability

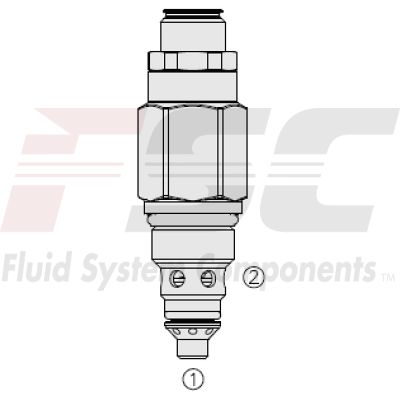

The Hydraforce 5612914 (5612914) is a screw-in, cartridge-style, direct-acting poppet-type relief valve designed for use as a pressure-limiting device in hydraulic circuit protection. This model, known as the RVD58-20, efficiently blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the poppet. It is engineered to provide fast response to load changes with minimal hysteresis and pressure rise, ensuring low internal leakage. The valve features a compact and economical design with dynamic response capabilities that make it suitable for applications experiencing pressure surges. The hardened poppet and cage construction contribute to its long service life. Optional spring ranges allow for adjustments up to 350 bar (5076 psi), accommodating various system requirements. Additionally, it includes high durometer Buna and Fluorocarbon seals for enhanced durability and performance under different conditions, along with an optional cap feature. An embossed QR code provides a serial number for easy identification and tracking of the product.
Unit weight:
0.13 kg (0.28 lb)
Internal wetted surface area:
89 cm² (113.8 in²)
Pressure change per adjuster turn:
37 bar (536 psi)
Spring code 30
65.5 bar (949 psi)
Spring code 50
9.5 bar (138 psi)
Spring code 80
| Ratings | Pressure Ratings Pressure rating: 350 bar (5076 psi) At port 1 207 bar (3000 psi) At port 2 Proof pressure: 413 bar (10,000 psi) Port 1 Burst pressure: 1379 bar (20,000 psi) Port 1 Crack pressure defined: pressure evident at at 0.95 lpm (0.25 gpm) Reseat pressure: Nominal 90% of crack pressure Flow Ratings Flow rating: 37.9 lpm (10 gpm) Port 1 to 2 at maximum pressure Maximum internal leakage: 0.25 ml/min (5 drops) at maximum pressure Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Ambient temperature: -40 to 70 °C (-40 to 160 °F) Storage temperature: -40 to 70 °C (-40 to 160 °F) Environmental Ratings Corrosion protection: 230 H salt spray per ASTMB117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2B 08-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) Adjuster torque: 17.6 N-m (13 ft-lb) Maximum torque to apply when backing out adjuster Adjuster locknut torque: 13.6 ±1 N-m (10 ±1 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RVD58-20F-H-J-R/S F Adjustment Option F A 1/4 in Allen Head H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 8 14 to 55 bar (200 to 800 psi) Spring Range R 30 55 to 207 bar (800 to 3000 psi) Spring Range R 50 207 to 350 bar (3000 to 5075 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK08-2HN-O
Nitrile
SK08-2HV-O
Fluorocarbon
SK08-2P-O
Polyurethane
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Black Tamper-proof Cap:
Part No. 4618450
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
