HYDRAFORCE
5613700.10
$75.00 USD
- HYDRAFORCE
- Material:5613700.10
- Model:RV10-28A
- Summary:RELIEF VALVE PILOT OPERATED U.S. PATENT 6,805,155 and 7,069,945
Quantity in stock: 80
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce RV10-28A-0-N-35/10 (5613700.10) is a screw-in, cartridge-style, pilot-operated relief valve with a reverse free flow check valve, designed for use in hydraulic circuits that demand fast response times, low hysteresis, minimal leakage, and low pressure override. This versatile valve blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. It features a relief flow path from port 1 to port 2 and allows reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. The valve can operate in either relief or check valve mode and comes with various adjustment options that are secure against backing out. It offers several pressure ranges and is built with a hardened spool and cage for durability. The RV10-28A-0-N-35/10 has a maximum pressure rating of 289.6 bar (4200 psi), proof pressure of 620.5 bar (9000 psi), and burst pressure of 1241.1 bar (18000 psi). Its adjustable pressure range spans from 13.8 to 289.6 bar (200 to 4200 psi), with an approximate increment of 98.6 bar (1430 psi) per adjuster turn. The crack pressure is defined at a flow rate of 7.6 lpm (2 gpm), with reseat pressure nominally set at 90% of the crack pressure. Flow specifications include a rating of up to 113.6 lpm (30 gpm) from port 1 to port 2 and maximum internal leakage capped at approximately 0.53 ml/min under specific conditions. The valve's response time varies between modes, being as quick as 0.06 seconds in certain scenarios. Temperature ratings accommodate operating fluid temperatures ranging from -40\u00b0C to +100\u00b0C with buna N seals, extending further with different seal options like fluorocarbon or polyurethane seals. Installation requires adherence to torque specifications within the VC10-2 cavity size parameters, ensuring proper functionality without orientation restrictions.
The Hydraforce RV10-28A-0-N-35/10 (5613700.10) is a screw-in, cartridge-style, pilot-operated relief valve with a reverse free flow check valve, designed for use in hydraulic circuits that demand fast response times, low hysteresis, minimal leakage, and low pressure override. This versatile valve blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. It features a relief flow path from port 1 to port 2 and allows reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. The valve can operate in either relief or check valve mode and comes with various adjustment options that are secure against backing out. It offers several pressure ranges and is built with a hardened spool and cage for durability. The RV10-28A-0-N-35/10 has a maximum pressure rating of 289.6 bar (4200 psi), proof pressure of 620.5 bar (9000 psi), and burst pressure of 1241.1 bar (18000 psi). Its adjustable pressure range spans from 13.8 to 289.6 bar (200 to 4200 psi), with an approximate increment of 98.6 bar (1430 psi) per adjuster turn. The crack pressure is defined at a flow rate of 7.6 lpm (2 gpm), with reseat pressure nominally set at 90% of the crack pressure. Flow specifications include a rating of up to 113.6 lpm (30 gpm) from port 1 to port 2 and maximum internal leakage capped at approximately 0.53 ml/min under specific conditions. The valve's response time varies between modes, being as quick as 0.06 seconds in certain scenarios. Temperature ratings accommodate operating fluid temperatures ranging from -40\u00b0C to +100\u00b0C with buna N seals, extending further with different seal options like fluorocarbon or polyurethane seals. Installation requires adherence to torque specifications within the VC10-2 cavity size parameters, ensuring proper functionality without orientation restrictions.
Unit weight:
0.27 kg (0.59 lb)
Internal wetted surface area:
187 cm² (29.1 in²)
| Ratings | Pressure Ratings Pressure rating: 289.6 bar (4200 psi) Proof pressure: 620.5 bar (9000 psi) Burst pressure: 1241.1 bar (18000 psi) Adjustable pressure range: 13.8 to 289.6 bar (200 to 4200 psi) Crack pressure defined: Pressure evident at 7.6 lpm (2.0 gpm) attained Reseat pressure: Nominal 90% of crack pressure Crack pressure: 2.1 bar (30 psi) Check valve mode Approximate pressure increment per adjuster turn: 98.6 bar (1430 psi) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Port 1 to 2 Maximum internal leakage: 0.53 ml/min (10 drops/min) Max 80% of nominal setting Other Ratings Response: 0.06 s RV to CV at 241 bar (3500 psi) 53 lpm (14 gpm) 0.3 s CV to RV at 241 bar (3500 psi) 53 lpm (14 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

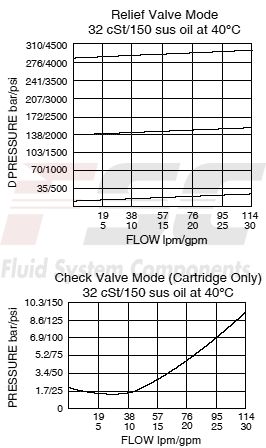

| Performance |  |

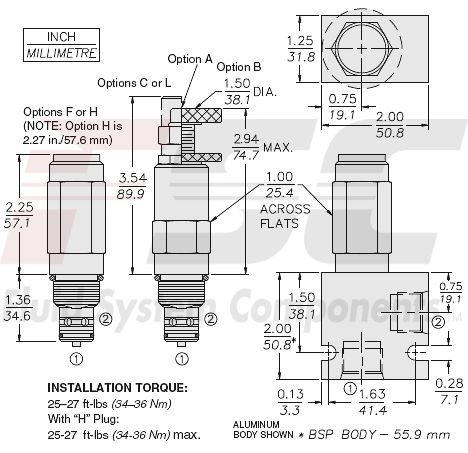

| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.6 N-m (25 to 27 ft-lb) Maximum allowable torque: 66.7 N-m (50 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV10-28F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 07 13.8 to 51.7 bar (200 to 750 psi) Spring Range R 35 51.8 to 241.3 bar (751 to 3500 psi) Spring Range R 42 51.8 to 289.6 bar (751 to 4200 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-B
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
