HYDRAFORCE
5614980P
$92.44 USD
- HYDRAFORCE
- Material:5614980P
- Model:PR50-38C-0-P-15/ REDUCING VALVE
- Summary:PRESSURE REDUCING/RELIEVING CARTRIDGE VALVE
Due to extremely high demand, please call 920-337-0234 for availability

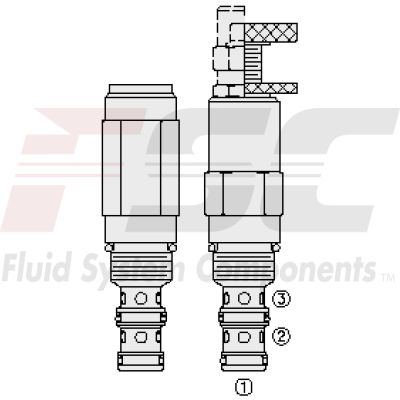

The Hydraforce 5614980P (5614980P) is a screw-in, cartridge-style, direct-acting spool type hydraulic pressure reducing/relieving valve. It features an internal spring chamber drain and spool damping chamber, making it ideal for pressure regulation in secondary circuits. The valve allows bidirectional flow from port 2 to port 1 in its steady state, with the spring chamber constantly drained at port 3. Once a predetermined pressure is reached at port 1, the cartridge shifts to block flow at port 2, effectively regulating the pressure at port 1. Additionally, the valve can relieve port 1 to port 3 at a variable value over the set reducing pressure. Notable features include adjustments that cannot be backed out of the valve and springs that are prevented from going solid. It offers optional spring ranges up to 227.5 bar (3300 psi), and its hardened spool and cage ensure long-lasting durability. The valve's design accommodates an industry-common size, with an option for a protective screen rated at 60 mesh or 250 microns for additional safeguarding of port 2.
Unit weight:
0.27 kg (0.59 lb)
A
0.29 kg (0.64 lb)
B
0.31 kg (0.69 lb)
C l
0.26 kg (0.57 lb)
F h
Internal wetted surface area:
215 cm² (33.3 in²)
A b c l
195 cm² (30.2 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) Ports 1 and 2 68.9 bar (1000 psi) Port 3 Proof pressure: 482.6 bar (7000 psi) Port 1 482.6 bar (7000 psi) Port 2 68.9 bar (1000 psi) Port 3 Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: See performance graphs Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: PR50-38XX 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 (tank port pressure is additive to pressure setting at ratio of 1:1) |
| Performance |   |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 33.9 to 36.6 N-m (25 to 27 ft-lb) 67.8 N-m (50 ft-lb) Maximum H style plug torque: 10.8 to 13.6 N-m (8 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PR50-38DFG-H-J-R/S D Rapid Response Option D BLANK Standard D R Rapid Response F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes G Screen G BLANK NONE G S 60 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 05 10.3 to 37.9 bar (150 to 550 psi) Spring Range R 15 6.9 to 103.4 bar (100 to 1500 psi) Spring Range R 21 27.6 to 144.8 bar (400 to 2100 psi) Spring Range R 33 55.2 to 227.5 bar (800 to 3300 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X=seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
