HYDRAFORCE
5620106
$77.41 USD
- HYDRAFORCE
- Material:5620106
- Model:PS10-36B-0-N-30/ SEQUENCE VALVE
- Summary:SEQUENCE VALVE, PILOT OPERATED U.S. PATENT # 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability

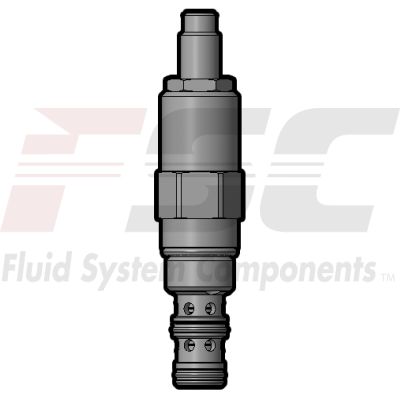

The Hydraforce 5620106 (5620106) is a screw-in, cartridge-style, pilot-operated, spool-type hydraulic sequence valve designed for precise control in hydraulic systems. Specifically known as the PS10-36X, this valve efficiently manages flow by blocking it from port 1 to port 2 in its default state while maintaining the spring chamber drained at port 3. When the pressure at port 1 reaches a predetermined level, the valve shifts to allow flow between port 1 and port 2. This shifting mechanism remains active until the circuit pressure falls below the set threshold. An important design feature is that any back pressure on port 3 contributes to the spring setting value, ensuring reliable operation under varying conditions. The PS10-36X is engineered with hardened spool and cage components, providing durability and extended service life even in demanding environments. It offers optional spring ranges up to 144.8 bar (2100 psi), allowing for customization based on specific application requirements. The design also ensures that adjustments cannot be backed out of the valve and prevents springs from reaching a solid state, enhancing operational safety and reliability. This industry-common size valve is suitable for various applications where precise hydraulic sequencing is essential, providing consistent performance in controlling system pressures and flows.
Unit weight:
0.259 kg (0.57 lb)
PS10-36A
0.281 kg (0.62 lb)
PS10-36B
0.299 kg (0.66 lb)
PS10-36C PS10-36L
0.249 kg (0.55 lb)
PS10-36F
0.245 kg (0.54 lb)
PS10-36H
Internal wetted surface area:
161 cm² (25 in²)
PS10-36A PS10-36B PS10-36C PS10-36L
181 cm² (28 in²)
PS10-36F PS10-36H
Pressure change per adjuster turn:
3.8 bar (54.54 psi)
A Adaptor Code 04
16.0 bar (231.63 psi)
A Adaptor Code 15
27.8 bar (402.72 psi)
A Adaptor Code 30
47.3 bar (685.41 psi)
A Adaptor Code 50
4.7 bar (68.17 psi)
H adaptor Code 04
20.0 bar (289.54 psi)
H adaptor Code 15
34.7 bar (503.40 psi)
H adaptor Code 30
59.1 bar (856.77 psi)
H adaptor Code 50
| Ratings | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) At port 1 241.3 bar (3500 psi) At port 2 68.9 bar (1000 psi) At port 3 Proof pressure: 482.6 bar (7000 psi) At port 1 482.6 bar (7000 psi) At port 2 103.4 bar (1500 psi) At port 3 Burst pressure: 1034 bar (15000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Flow Ratings Flow rating: 56.8 lpm (15 gpm) Maximum internal leakage: 82 ml/min (5 in³/min) At port 3, to 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: PS10-36X - Type III clear zinc plating per astm B633, GPS10-36X - 960 hour salt spray per ASTM B117 |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |   |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H style plug torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PS10-36F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 4.1 to 27.6 bar (60 to 400 psi) Spring Range R 15 16.5 to 103.4 bar (240 to 1500 psi) Spring Range R 30 31.7 to 206.9 bar (460 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X=seal options
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
