HYDRAFORCE
5623085
$159.32 USD
- HYDRAFORCE
- Material:5623085
- Model:RV12-26A-16T-N-30/ RELIEF VALVE
- Summary:PILOT OPERATED RELIEF VALVE U.S. PATENT # 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability

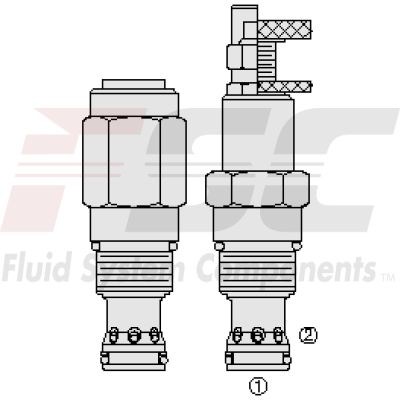

The Hydraforce 5623085 (5623085) is a screw-in, cartridge-style, pilot-operated relief valve designed for high-performance hydraulic circuits that demand quick response and minimal hysteresis. This two-stage, spool-type valve effectively limits pressure by blocking flow from port 1 to port 2 until the pressure at port 1 exceeds a predetermined threshold. Once this occurs, the pilot relief is activated, allowing the main stage to shift and open the flow between ports. It's important to note that this valve is not suitable for cross-over relief applications. The RV12-26X model features adjustments that cannot be backed out of the valve, preventing springs from going solid and ensuring reliable operation. It also boasts a hardened spool and cage for extended durability. The valve offers optional spring ranges up to 240 bar (3500 psi), enabling customization based on specific application needs. With its rapid and smooth response to pressure surges, this product is an efficient solution for maintaining system integrity in demanding environments. Its cost-effective cavity design further enhances its appeal as a versatile component in hydraulic systems.
Unit weight:
0.35 kg (0.78 lb)
A
0.38 kg (0.83 lb)
B
0.40 kg (0.88 lb)
C l
0.40 kg (0.89 lb)
F h
Internal wetted surface area:
209 cm² (32.4 in²)
A b c l
221 cm² (34.3 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 103.4 bar (1500 psi) Port 2 Proof pressure: 689.5 bar (10000 psi) Burst pressure: 1379.0 bar (20000 psi) Crack pressure defined: Pressure evident at 7.6 lpm (2 gpm) Flow Ratings Flow rating: 170.3 lpm (45 gpm) At max pressure Maximum internal leakage: 197 ml/min (12 in³/min) At port 2 at 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (grv12-26x) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) 33.9 to 35.3 N-m (25 to 26 ft-lb) H-style plug Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV12-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 3.8 to 110.3 bar (200 to 1600 psi) Spring Range R 30 31 to 206.9 bar (450 to 3000 psi) Spring Range R 35 34.5 to 241.5 bar (500 to 3500 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK12-2X-B
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
