HYDRAFORCE
5623091
$161.43 USD
- HYDRAFORCE
- Material:5623091
- Model:RV12-26A-16T-V-04/ RELIEF VALVE
- Summary:PILOT OPERATED RELIEF VALVE U.S. PATENT # 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability

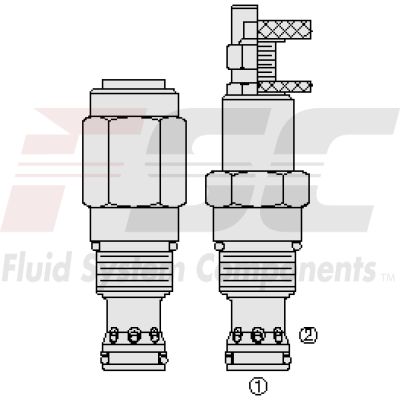

The Hydraforce 5623091 (5623091) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits that require fast response and low hysteresis. This valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to unseat the pilot relief, allowing the main stage to shift and open port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. The RV12-26X features adjustments that cannot be backed out of the valve, ensuring springs do not go solid and maintaining system integrity. The hardened spool and cage construction contribute to its long lifespan, while optional spring ranges extend up to 240 bar (3500 psi), accommodating various application needs. This product offers rapid and smooth responses to pressure surges, making it a cost-effective solution for hydraulic systems requiring precise pressure control.
Unit weight:
0.35 kg (0.78 lb)
A
0.38 kg (0.83 lb)
B
0.40 kg (0.88 lb)
C l
0.40 kg (0.89 lb)
F h
Internal wetted surface area:
209 cm² (32.4 in²)
A b c l
221 cm² (34.3 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 103.4 bar (1500 psi) Port 2 Proof pressure: 689.5 bar (10000 psi) Burst pressure: 1379.0 bar (20000 psi) Crack pressure defined: Pressure evident at 7.6 lpm (2 gpm) Flow Ratings Flow rating: 170.3 lpm (45 gpm) At max pressure Maximum internal leakage: 197 ml/min (12 in³/min) At port 2 at 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (grv12-26x) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) 33.9 to 35.3 N-m (25 to 26 ft-lb) H-style plug Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV12-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 3.8 to 110.3 bar (200 to 1600 psi) Spring Range R 30 31 to 206.9 bar (450 to 3000 psi) Spring Range R 35 34.5 to 241.5 bar (500 to 3500 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK12-2X-B
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
