HYDRAFORCE
5635015V
$106.09 USD
- HYDRAFORCE
- Material:5635015V
- Model:SVRV10-26D-0-V-0 VENTED SVRV
- Summary:PILOT OPERATED RELIEF VALVE U.S. PATENT # 7,137,406
Due to extremely high demand, please call 920-337-0234 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

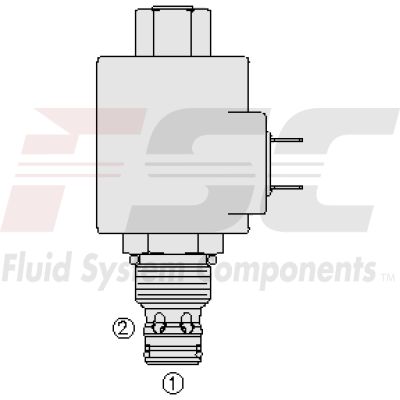

The Hydraforce 5635015V (5635015V) is a high-performance hydraulic relief valve designed for demanding hydraulic circuits requiring fast response and low hysteresis. This screw-in, cartridge-style, pilot-operated (two-stage), spool-type valve effectively limits pressure by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief. This action allows the main spool to shift, opening port 1 to port 2. It's important to note that this valve is not suitable for cross-over relief applications. The RV10-26X model features several adjustment options\u2014A, B, and C\u2014with positive stops that prevent springs from going solid, ensuring reliable operation. Its hardened spool and cage contribute to long-lasting durability, while optional spring ranges extend up to 207 bar (3000 psi) for versatile application needs. With its fast and smooth response to pressure surges and compatibility with industry-standard cavities, this valve is a dependable choice for various hydraulic applications.
The Hydraforce 5635015V (5635015V) is a high-performance hydraulic relief valve designed for demanding hydraulic circuits requiring fast response and low hysteresis. This screw-in, cartridge-style, pilot-operated (two-stage), spool-type valve effectively limits pressure by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief. This action allows the main spool to shift, opening port 1 to port 2. It's important to note that this valve is not suitable for cross-over relief applications. The RV10-26X model features several adjustment options\u2014A, B, and C\u2014with positive stops that prevent springs from going solid, ensuring reliable operation. Its hardened spool and cage contribute to long-lasting durability, while optional spring ranges extend up to 207 bar (3000 psi) for versatile application needs. With its fast and smooth response to pressure surges and compatibility with industry-standard cavities, this valve is a dependable choice for various hydraulic applications.
Unit weight:
0.19 kg (0.42 lb)
Internal wetted surface area:
183 cm² (28.4 in²)
| Ratings | Pressure Ratings Pressure rating: 296.5 bar (4300 psi) Proof pressure: 344.7 bar (5000 psi) Burst pressure: 689.5 bar (10000 psi) Minimum to seat press fit Relief pressure defined: Pressure evident at 7.57 lpm (2 gpm) Reseat pressure: 80% of relief pressure setting Relief pressure range: 20.7 to 296.5 bar (300 to 4300 psi) From zero to maximum control current Pressure drop: 6.6 bar (95 psi) At 83.3 lpm (22 gpm) Pressure rise: 0.73 bar/lpm (40 psi/gpm) Flow Ratings Flow rating: 83.3 lpm (22 gpm) Maximum pilot flow: 350 ml/min (21.4 in³/min) And leakage at 80% of relief pressure setting: max Other Ratings Response: 65 ms Flow pressure 7.6 lpm (2 gpm) 275.8 bar (4000 psi) Cycle life: 970000 cycles at 241.3 bar (3500 psi) 15.1 lpm (4 gpm) 296.5 bar (4300 psi) 9.5 lpm (2.5 gpm) Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gsvrv10-26x) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.2 N-m (24 to 26 ft-lb) Maximum allowable torque: 54.2 N-m (40 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SVRV10-26D-H-J-L/S D Pressure Setting D A 241.3 bar (3500 psi) Relief Pressure D B 206.8 bar (3000 psi) Relief Pressure D C 172.4 bar (2500 psi) Relief Pressure D D 137.9 bar (2000 psi) Relief Pressure D E 103.4 bar (1500 psi) Relief Pressure D F 20.7 to 296.5 bar (300 to 4300 psi) Factory Preset Relief Pressure H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires S Pressure Setting S XX 20.7 to 296.5 bar (300 to 4300 psi) |
Seal kit:
SK10-2X-B (x = seal option)
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
