HYDRAFORCE
5637300

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

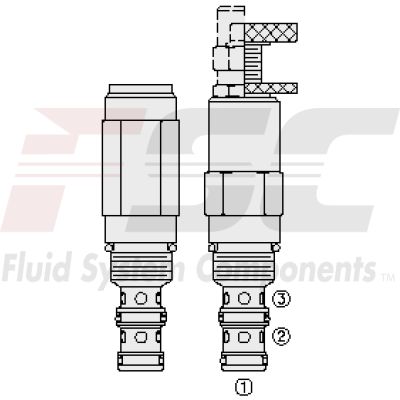

The Hydraforce 5637300 (5637300) is a screw-in, cartridge-style, direct-acting, spool-type hydraulic sequence valve designed for precise flow control in hydraulic systems. This model is engineered to direct flow to a secondary circuit once a specified pressure level is attained in the primary circuit. In its default state, the PS10-32 blocks flow from port 3 to port 2. Upon reaching a predetermined pressure at port 1, the valve shifts to permit flow from port 3 to port 2. The valve features an external pilot and internal spring chamber drain, with the spring chamber vented at port 2, meaning back pressure at this port will directly affect the valve's setting on a one-to-one basis. This model includes adjustments that cannot be backed out of the valve and prohibits springs from becoming solid, ensuring reliable operation under various conditions. It offers optional spring ranges up to 144.8 bar (2100 psi), providing versatility for different application requirements. The hardened spool and cage construction contribute to long-lasting performance, while its industry-common size facilitates easy integration into existing systems.
